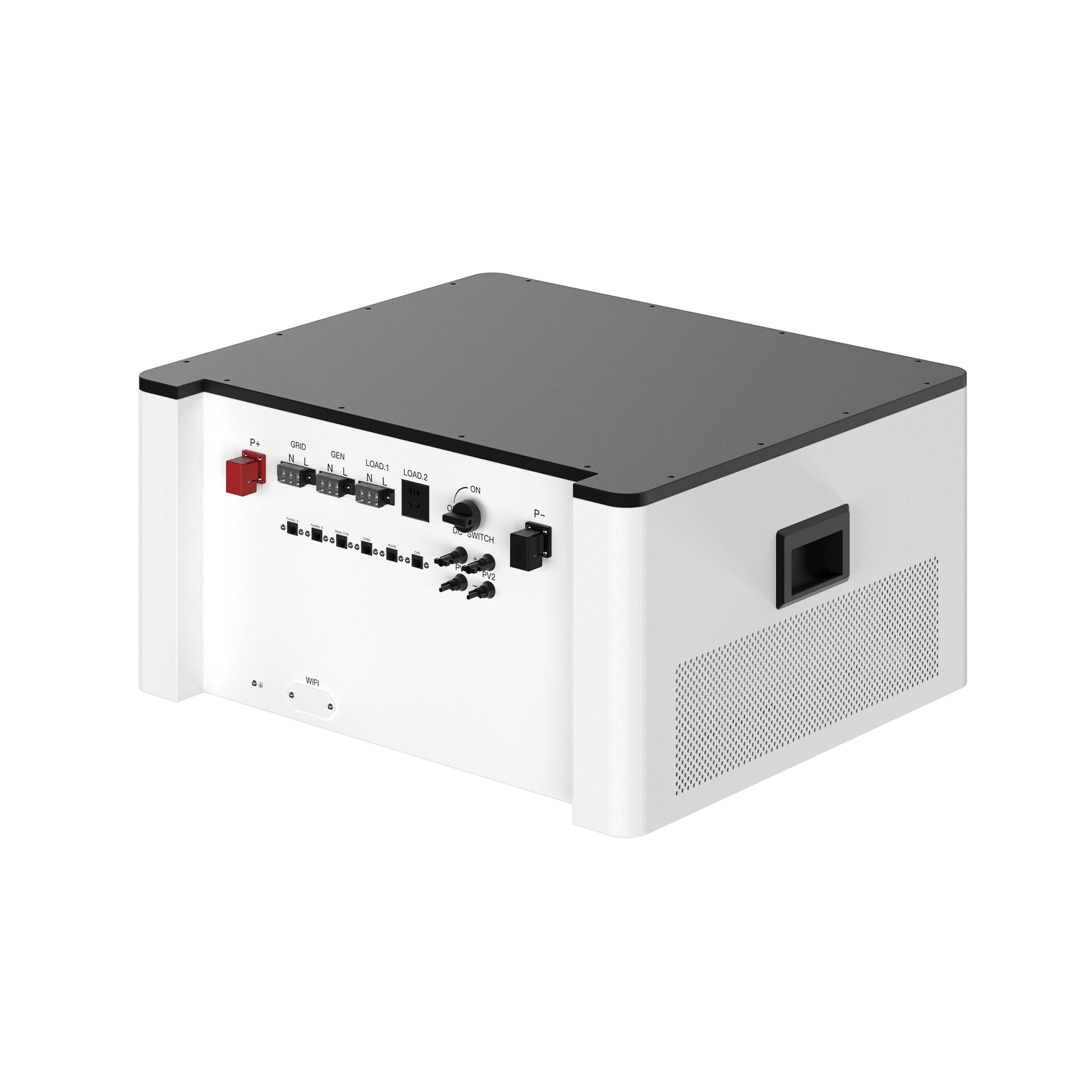

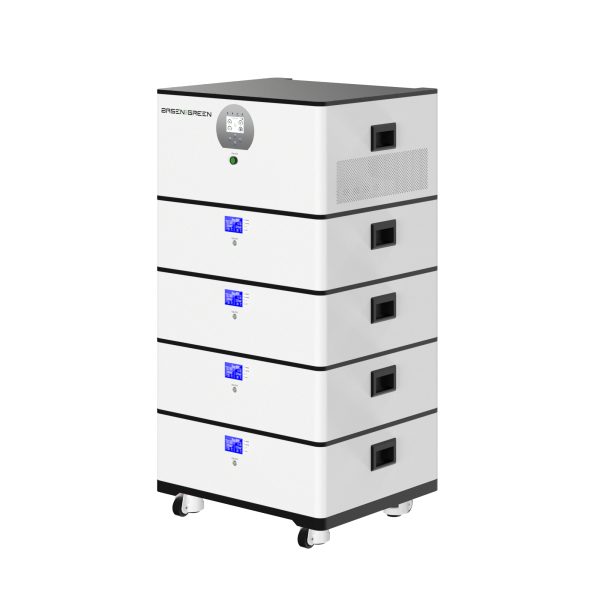

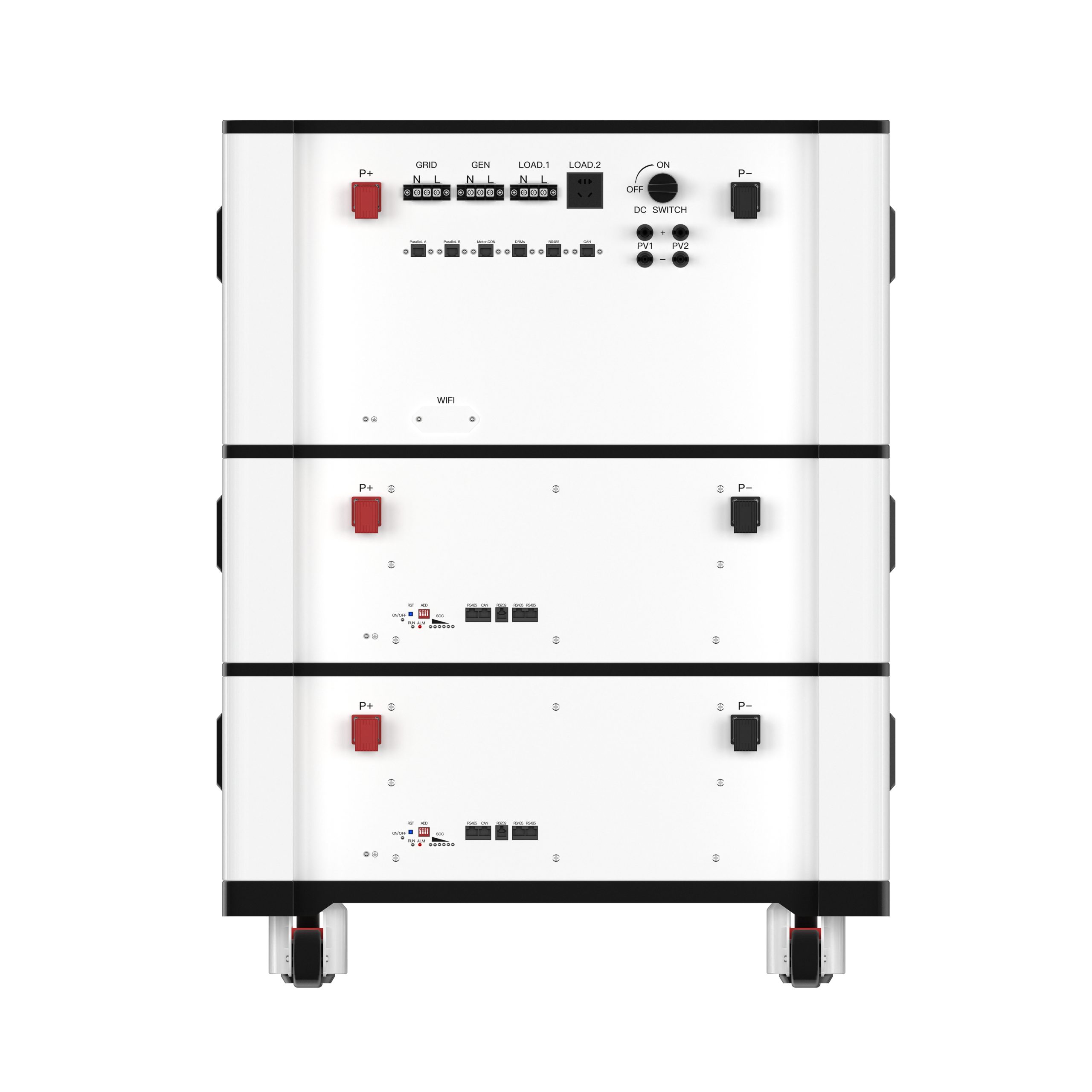

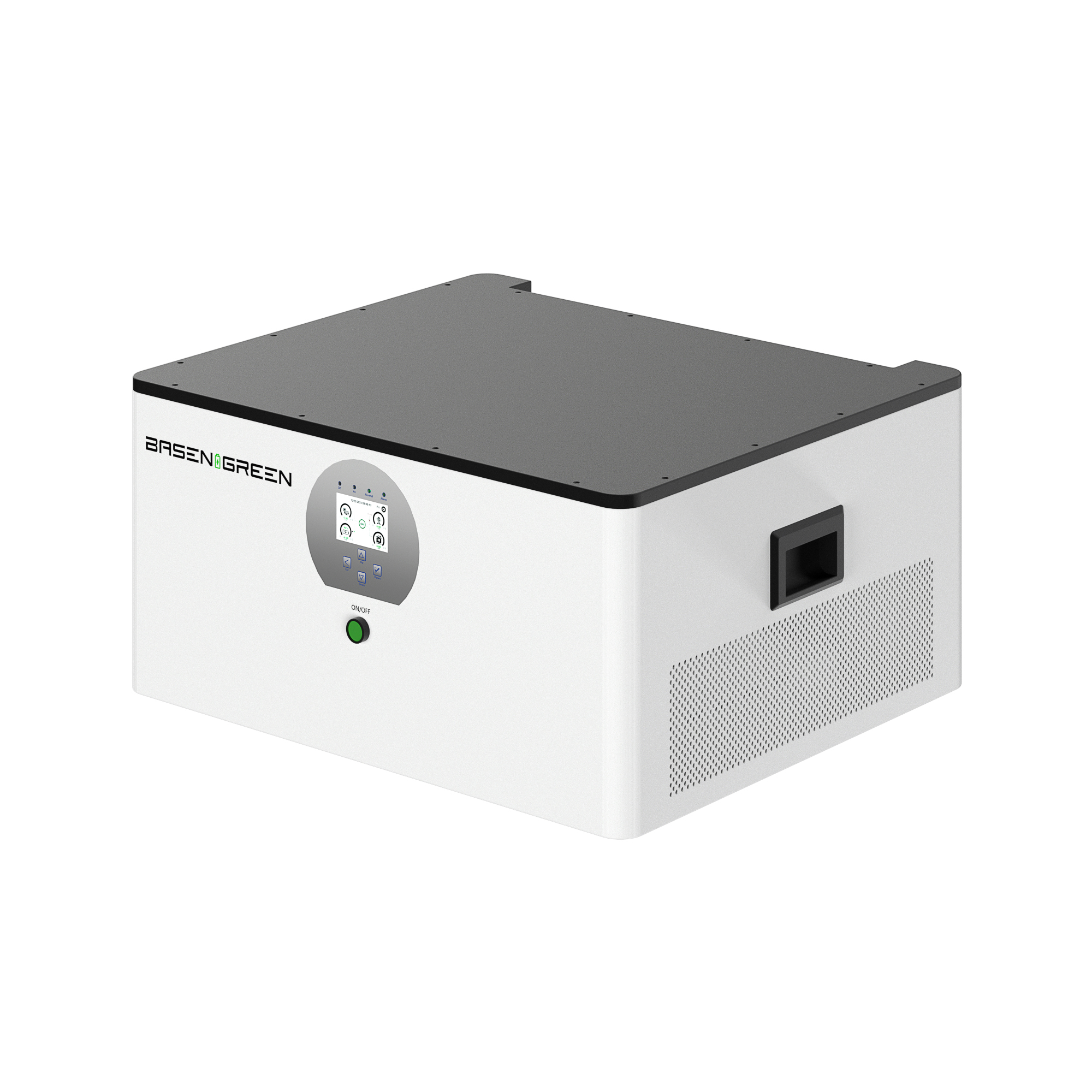

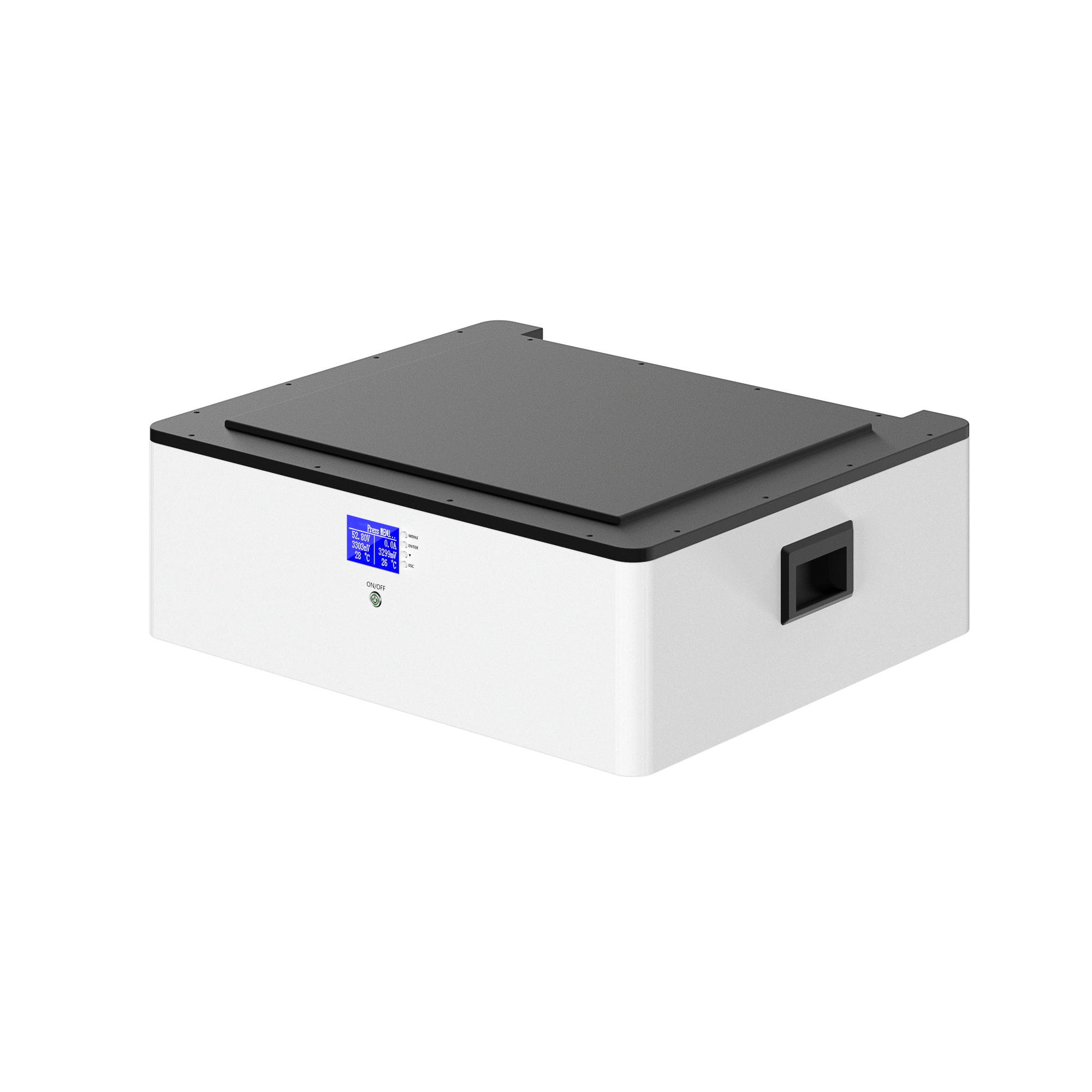

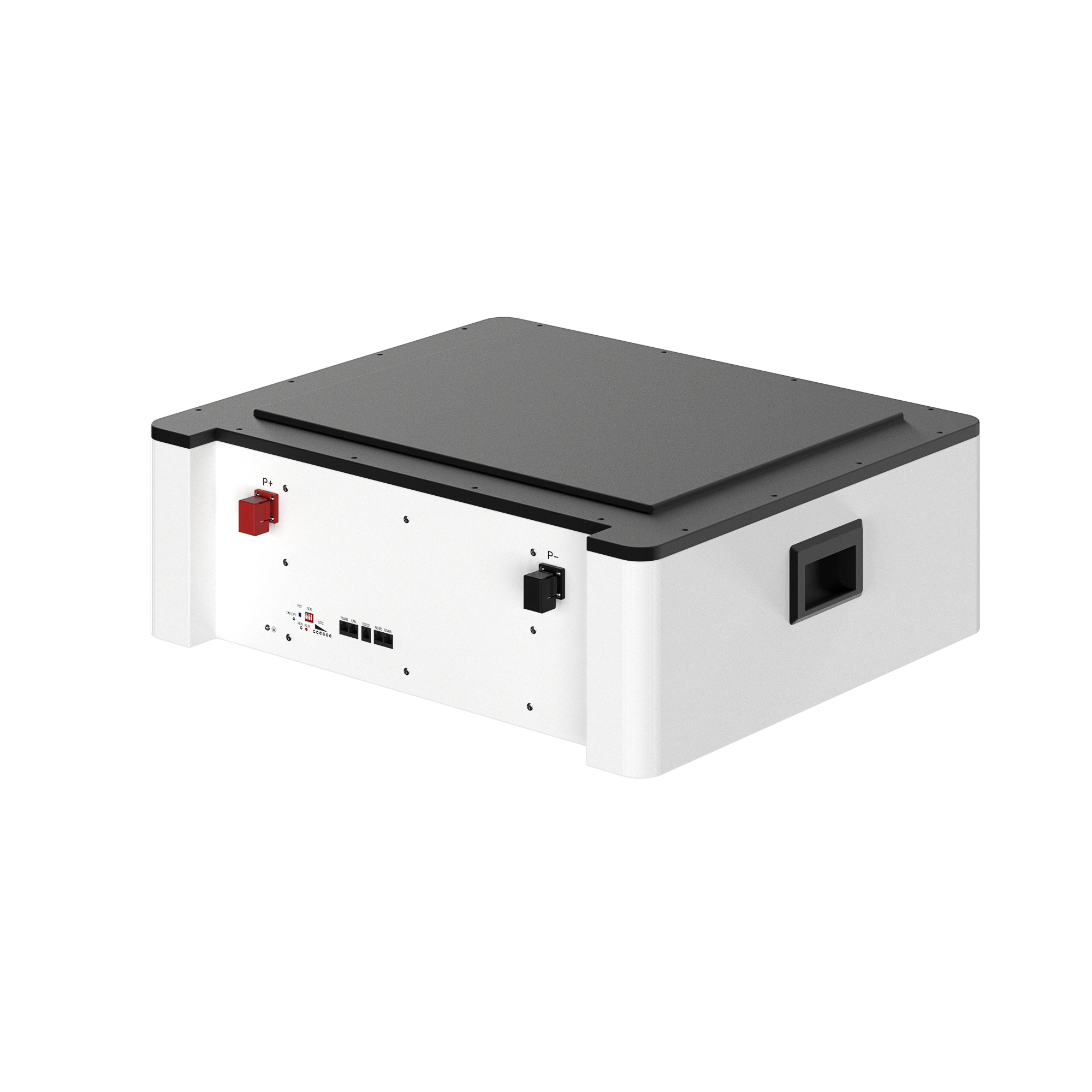

BR-AIO-LV-DY 10.24KWH+5KW
| Model | BR-AIO-LV-DY 10.24KWH+5KW |
| Inverter Module | |
| Model | SUN-5K-SG01LP1-EU |
| Inverter Output Power[W] | 5000 |
| Battery Module | |
| Total Energy [KWH] | 5.12 |
| Capacity [Ah] | 100 |
| Nominal Voltage [V] | 51.2 |
| Operate Voltage Range [V] | 43.2-57.6 |
| MAX.Charge & Discharge Current[A] | 200 |
| System Parameter | |

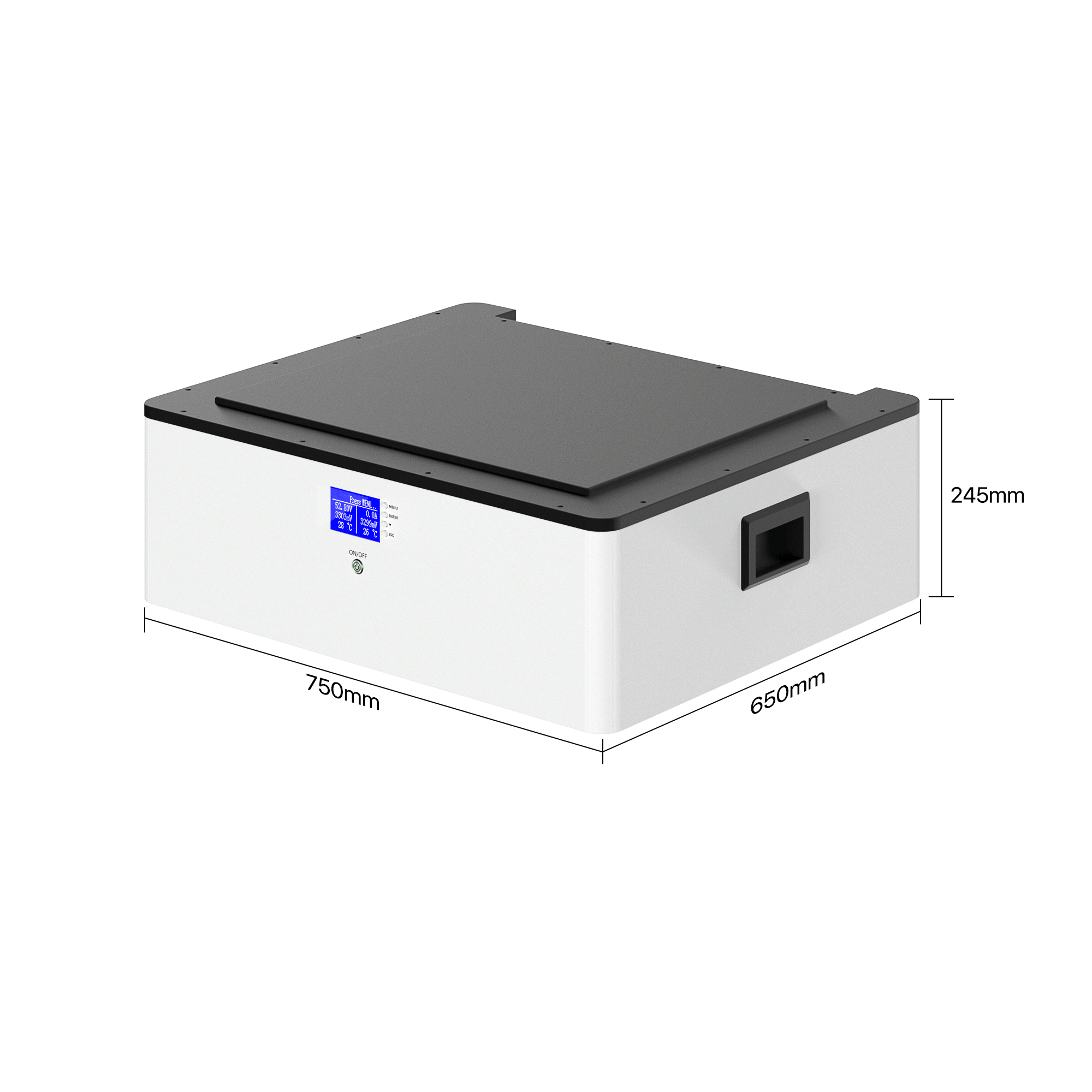

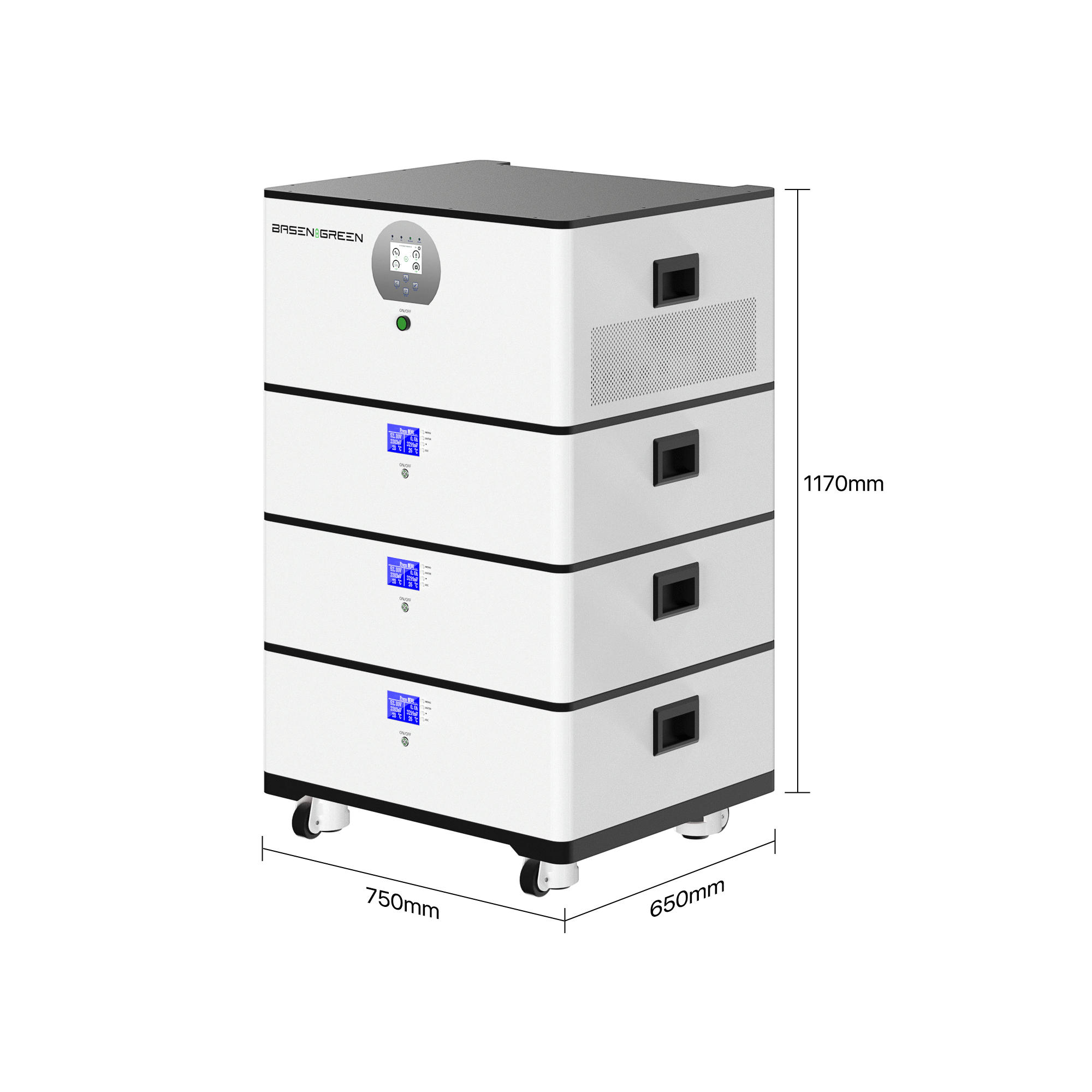

| Dimension[W×D×H,mm] | 610X250X1410 |
| Net Weight[Kg] | 165 |
File Name
File Type
Language
BR-AIO-LV-DY 10.24kWh+5KW_ All-in-one Energy Datasheet
EN
