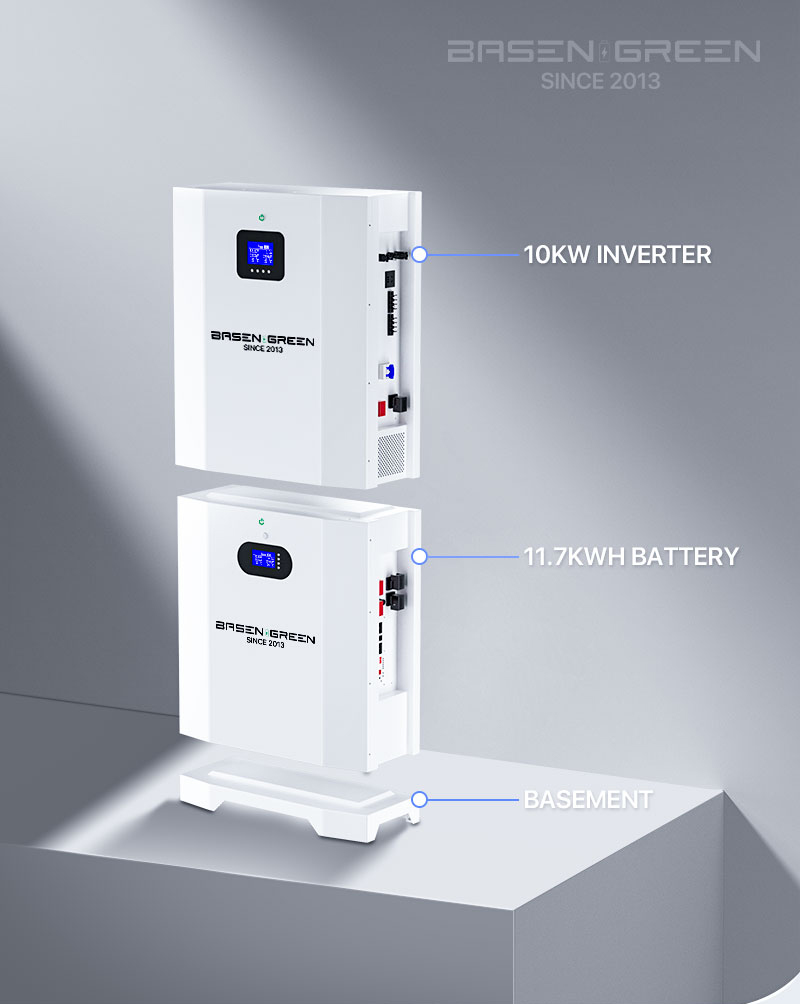

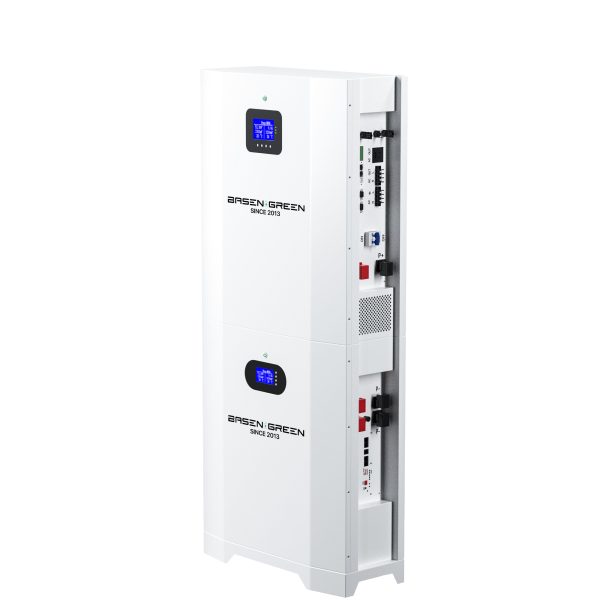

BR-AIO-LV-SR 11KWH+10KW
| Model | BR-AIO-LV-SR 11KWH+10KW |
| Inverter Module | |
| Model | SPI-10K-S |
| Inverter Output Power[W] | 10000 |
| Battery Module | |
| Total Energy [KWH] | 11.77 |
| Capacity [Ah] | 230 |
| Nominal Voltage [V] | 51.2 |
| Operate Voltage Range [V] | 43.2-57.6 |
| MAX.Charge & Discharge Current[A] | 200 |
| System Parameter | |
| Dimension[W×D×H,mm] | 800X650X680 |
| Net Weight[Kg] | 160 |
File Name
File Type
Language
BR-AIO-LV-SR 11kWh+10KW-BasenGreen All in one Energy Storage Datasheet
EN
